Description

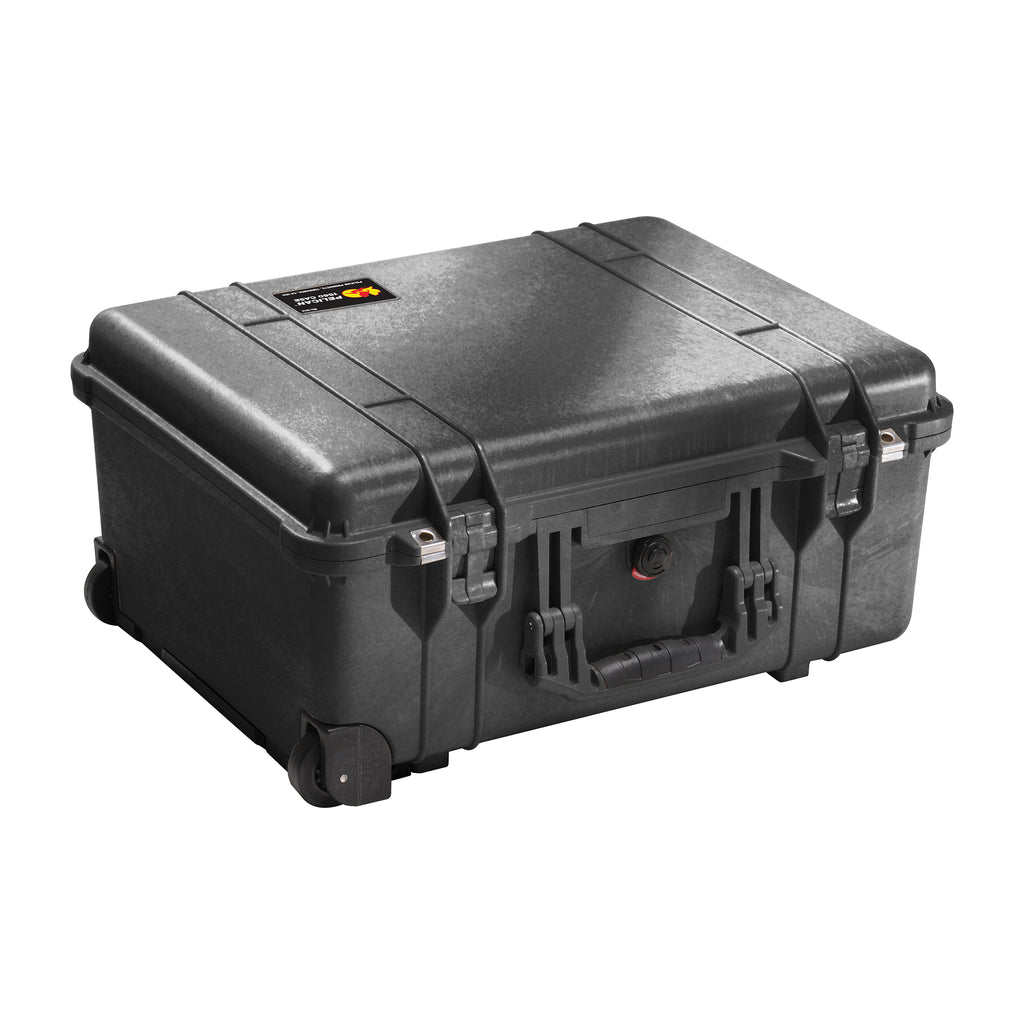

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, overmolded rubber handles and stainless steel hardware.
• Strong polyurethane wheels with stainless steel bearings
• Watertight, crushproof, and dustproof

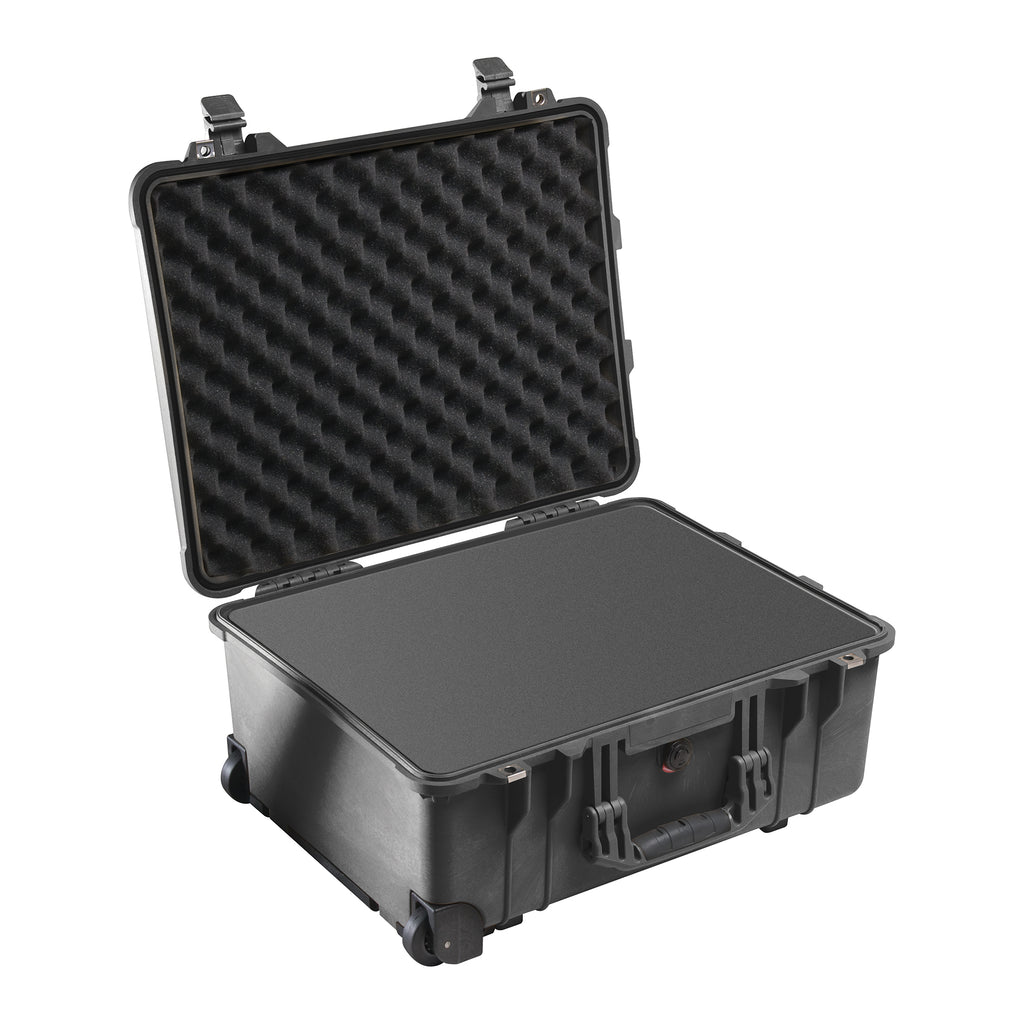

• 2 level Pick N Pluck™ with convoluted lid foam
• Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
• Comfortable rubber over-molded top and side handles
• Easy open Double Throw latches
• Lifetime Guarantee of Excellence
• O-ring seal
• Open cell core with solid wall design - strong, light weight

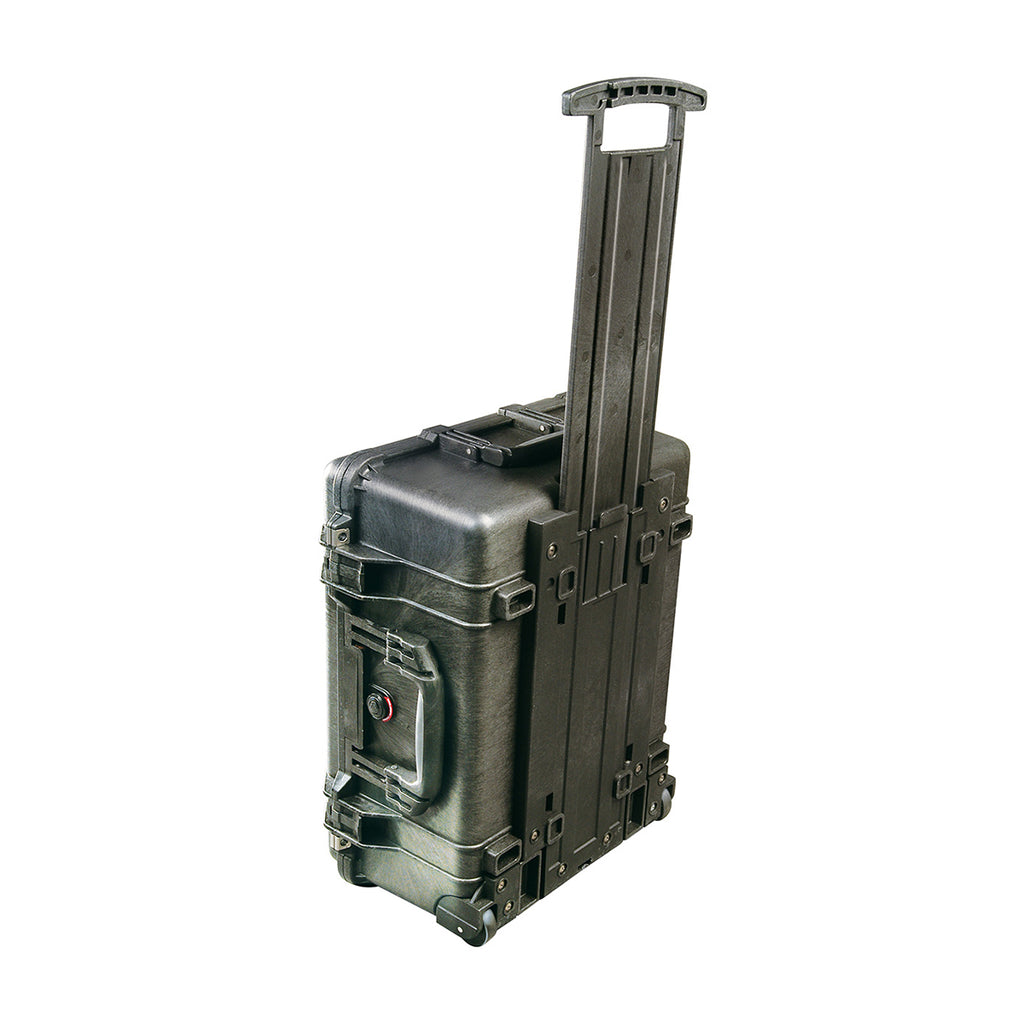

• Retractable extension handle
• Stainless steel hardware and padlock protectors
CONFIGURATIONS
1560: Standard
1564: With Padded Dividers
1560NF: No Foam
1560TP: With TrekPak Divider System
1560WF: With Foam
DIMENSIONS
Interior (L×W×D): 19.92 x 14.98" x 9.00 (50.6 x 38 x 22.9 cm)
Exterior (L×W×D): 22.07 x 17.92" x 10.42 (56.1 x 45.5 x 26.5 cm)
Lid Depth: 2.00" (5.1 cm)
Bottom Depth: 7.00" (17.8 cm)
Total Depth: 9" (22.9 cm)
Int Volume: 1.55 ft³ (0.044 m³)
Padlock Hole Diameter: 5/16" (8 mm)
MATERIALS
Body: Polypropylene
Latch: ABS
O-Ring: Polymer
Pins: Stainless Steel
Foam: 1.3 lb Polyurethane
Purge Body: ABS
Purge Vent: 3 Micron Hydrophobic Non-Woven
COLORS
Black
Desert Tan
Orange
OD Green
Silver
Yellow
WEIGHT
Weight With Foam: 20.00 lbs (9.1 kg)
Weight Empty: 17.00 lbs (7.7 kg)
Buoyancy: 115.00 lbs (52.2 kg)
Master Pack Weight: 21.00 lbs (9.5 kg)
TEMPERATURE
Minimum Temperature: -40°F (-40 °C)
Maximum Temperature: 210°F (98.9 °C)
CERTIFICATIONS
IP67
Def Stan 81-41
STANAG 4280
OTHER
Wheels: 2
Extendable Handle: yes
Master Pack: 1
Nameplate: yes
Military: yes
