Description

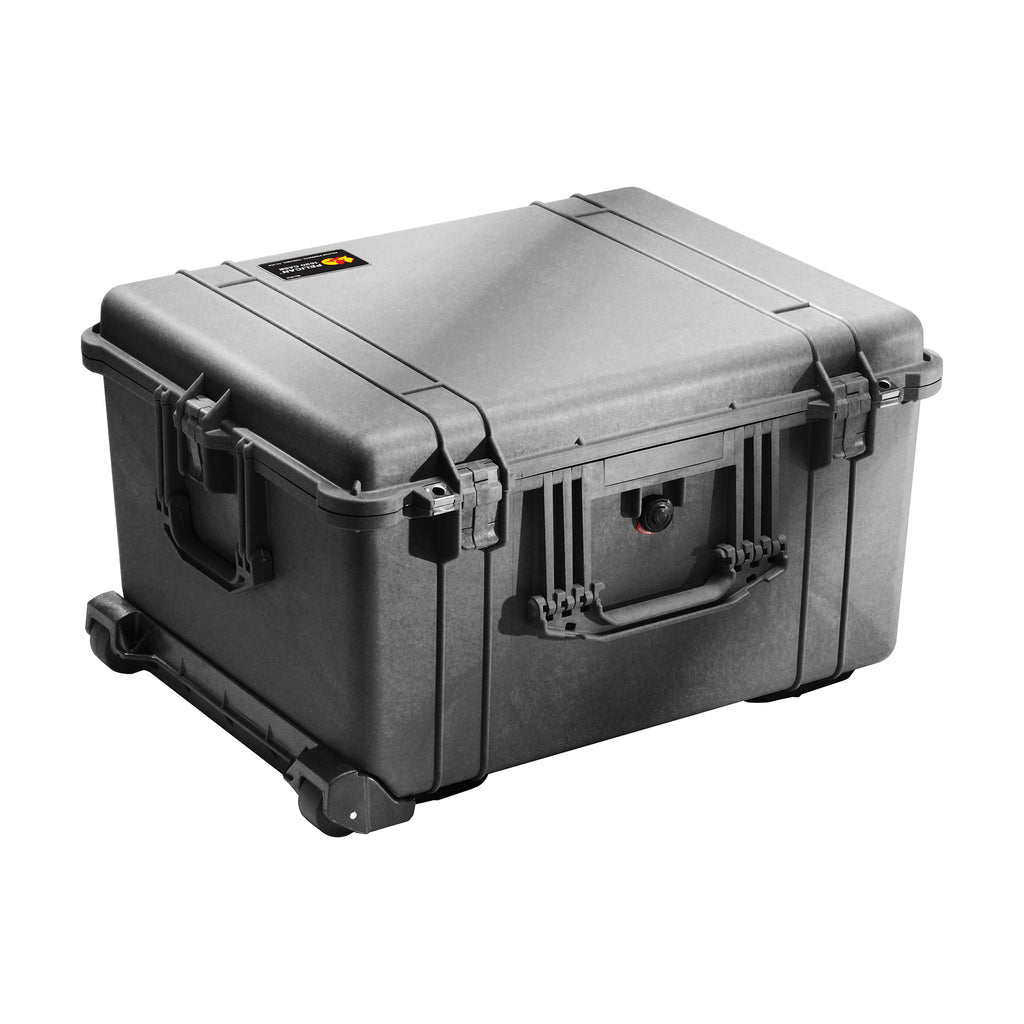

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, overmolded rubber handles and stainless steel hardware.
• Personalized nameplate service available
• Strong polyurethane wheels with stainless steel bearings
• Watertight, crushproof, and dustproof
• 4 level Pick N Pluck™ with convoluted lid foam
• Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
• Easy open Double Throw latches
• Fold down handles
• O-ring seal
• Open cell core with solid wall design - strong, light weight
• Retractable extension handle
• Stainless steel hardware and padlock protectors
CONFIGURATIONS
1620: Standard
1624: With Padded Dividers
1620NF: No Foam
1620WF: With Foam
DIMENSIONS
Interior (L×W×D): 21.48 x 16.42" x 12.54 (54.6 x 41.7 x 31.9 cm)
Exterior (L×W×D): 24.76 x 19.57" x 13.90 (62.9 x 49.7 x 35.3 cm)
Lid Depth: 2.01" (5.1 cm)
Bottom Depth: 10.53" (26.7 cm)
Total Depth: 12.54" (31.9 cm)
Int Volume: 2.56 ft³ (0.072 m³)
Padlock Hole Diameter: 5/16" (8 mm)
MATERIALS
Body Polypropylene
Latch ABS
O-Ring: Polymer
Pins: Stainless Steel
Foam: 1.3 lb Polyurethane
Purge Body: ABS
Purge Vent: 3 Micron Hydrophobic Non-Woven
COLORS
Black
Desert Tan
OD Green
WEIGHT
Weight With Foam: 24.62 lbs (11.2 kg)
Weight Empty: 21.20 lbs (9.6 kg)
Buoyancy: 149.91 lbs (68 kg)
Master Pack Weight: 26.90 lbs (12.2 kg)
TEMPERATURE
Minimum Temperature: -40°F (-40 °C)
Maximum Temperature: 210°F (98.9 °C)
CERTIFICATIONS
IP67
MIL C-4150J
Def Stan 81-41
STANAG 4280
OTHER
Wheels: 2
Extendable Handle: yes
Master Pack: 1
Nameplate: yes
Military: yes
