Description

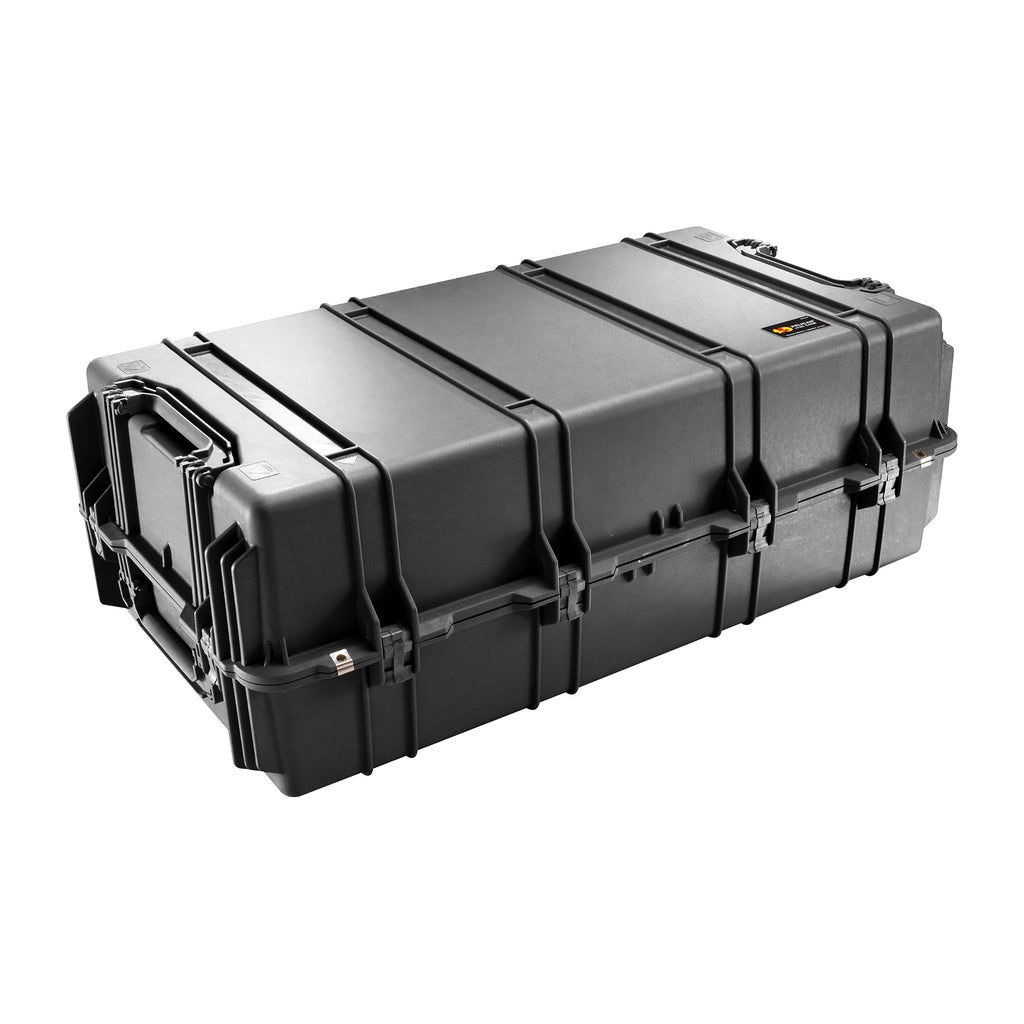

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, overmolded rubber handles and stainless steel hardware.
• Personalized nameplate service available
• 4 strong polyurethane wheels with stainless steel bearings
• The new class of XXL Pelican Transport Cases
• Watertight, crushproof, and dustproof

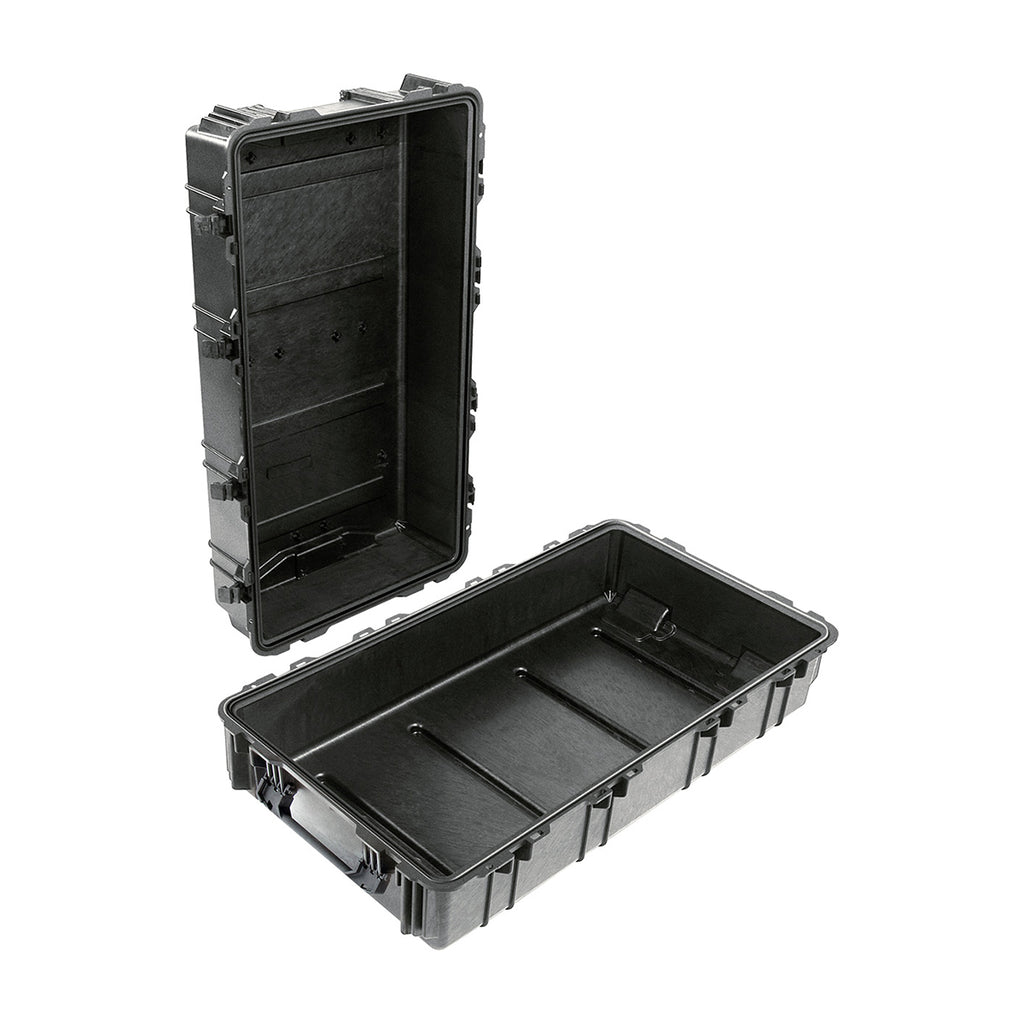

• 50/50 lid-to-base ratio for easy loading
• Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
• Completely detachable lid for full access
• Easy open Double Throw latches
• Fold down handles
• Lifetime Guarantee of Excellence
• O-ring seal
• Open cell core with solid wall design - strong, light weight
• Stainless steel padlock protectors
CONFIGURATIONS
1780: Standard
1780NF: No Foam
1780RF: With Rifle Foam Cut Insert
1780WF: With Foam
DIMENSIONS
Interior (L×W×D): 41.12 x 21.54" x 14.88 (104.4 x 54.7 x 37.8 cm)
Exterior (L×W×D): 44.90 x 25.32" x 16.50 (114 x 64.3 x 41.9 cm)
Lid Depth: 7.58" (19.3 cm)
Bottom Depth: 7.30" (18.5 cm)
Total Depth: 14.88" (37.8 cm)
Int Volume: 7.63 ft³ (0.216 m³)
Padlock Hole Diameter: 5/16" (8 mm)
MATERIALS
Body: Polypropylene
Latch: EXL
O-Ring: Polymer
Pins: Stainless Steel
Foam: 1.3 lb Polyurethane
Purge Body: ABS
Purge Vent: 3 Micron Hydrophobic Non-Woven
COLORS
Black
WEIGHT
Weight With Foam: 49.00 lbs (22.2 kg)
Weight Empty: 38.40 lbs (17.4 kg)
Buoyancy: 500.00 lbs (226.8 kg)
Master Pack Weight: 56.00 lbs (25.4 kg)
TEMPERATURE
Minimum Temperature: -40°F (-40 °C)
Maximum Temperature: 210°F (98.9 °C)
CERTIFICATIONS
Def Stan 81-41
STANAG 4280
OTHER
Wheels: 4
Master Pack: 1
Nameplate: yes
