Description

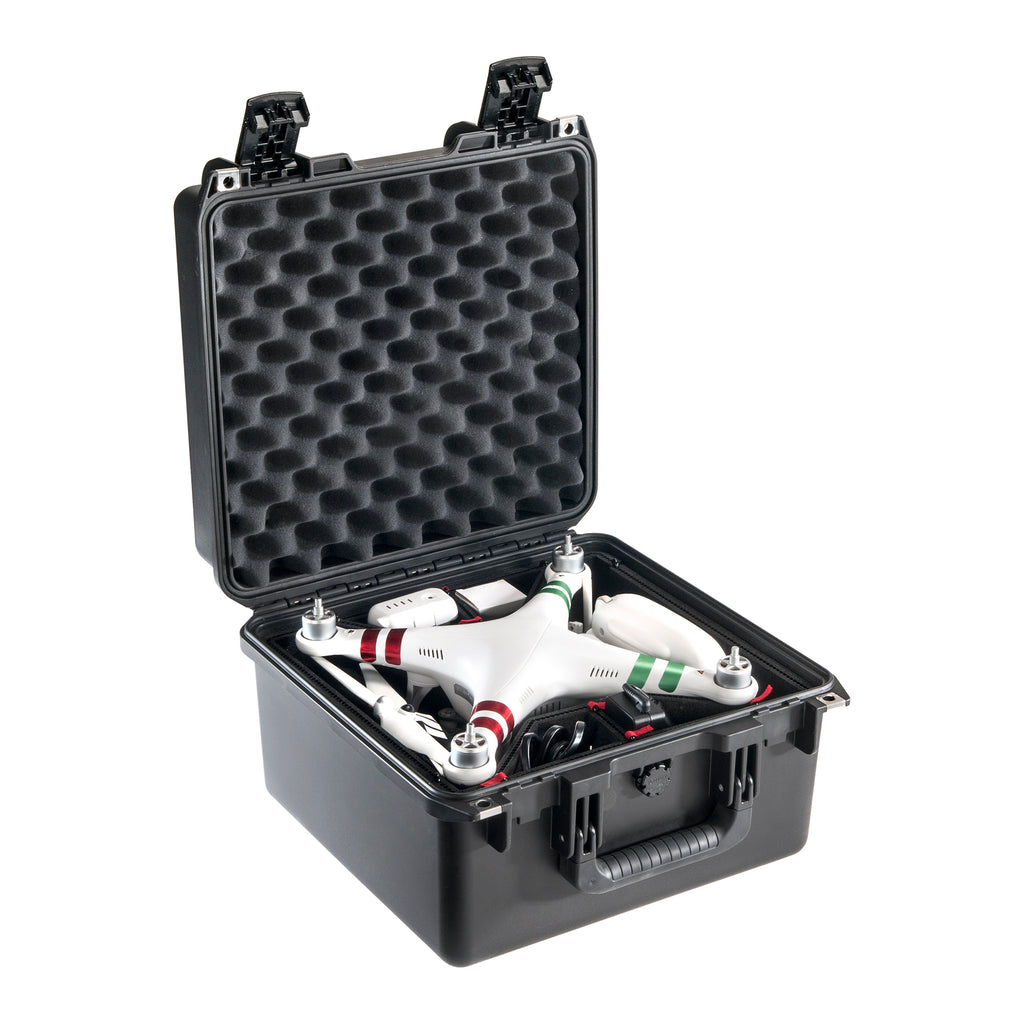

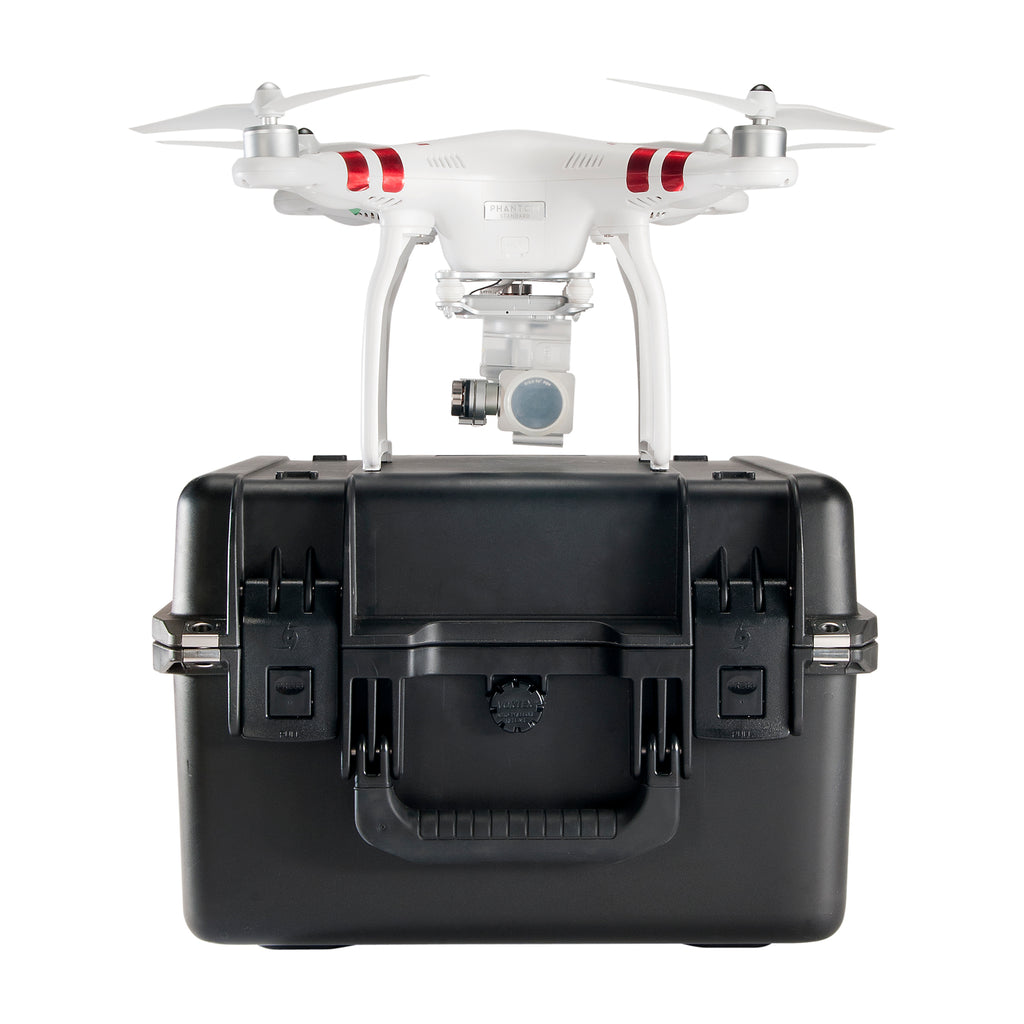

Give your gear extra space. With a deeper lid, the iM2275 is the first case in our Pelican™ Storm Case™ line that gives you more vertical space to work with for your equipment. This case gives you the freedom to configure multiple 4K cameras, diagnostic circuit readers, or a drone with accessories.
• Guaranteed for life
• Watertight, crushproof, and dustproof
• Two Press & Pull Latches
• Two Padlockable Hasps
• Double-layered, Soft-grip Handle
• Vortex™ Valve
• Powerful Hinges
• Lightweight Strong HPX® Resin
CONFIGURATIONS

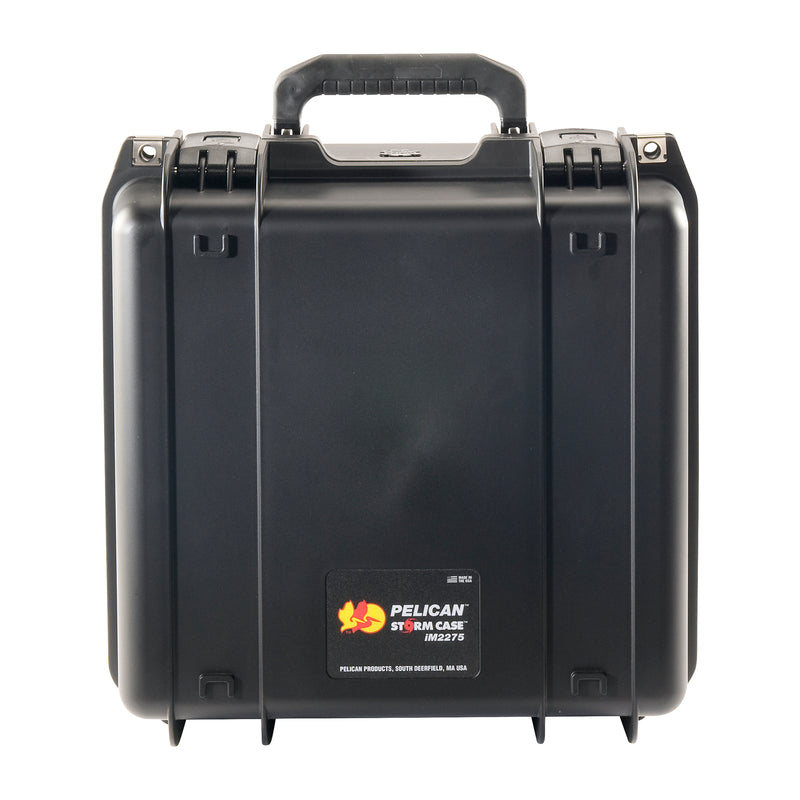

iM2275: Standard

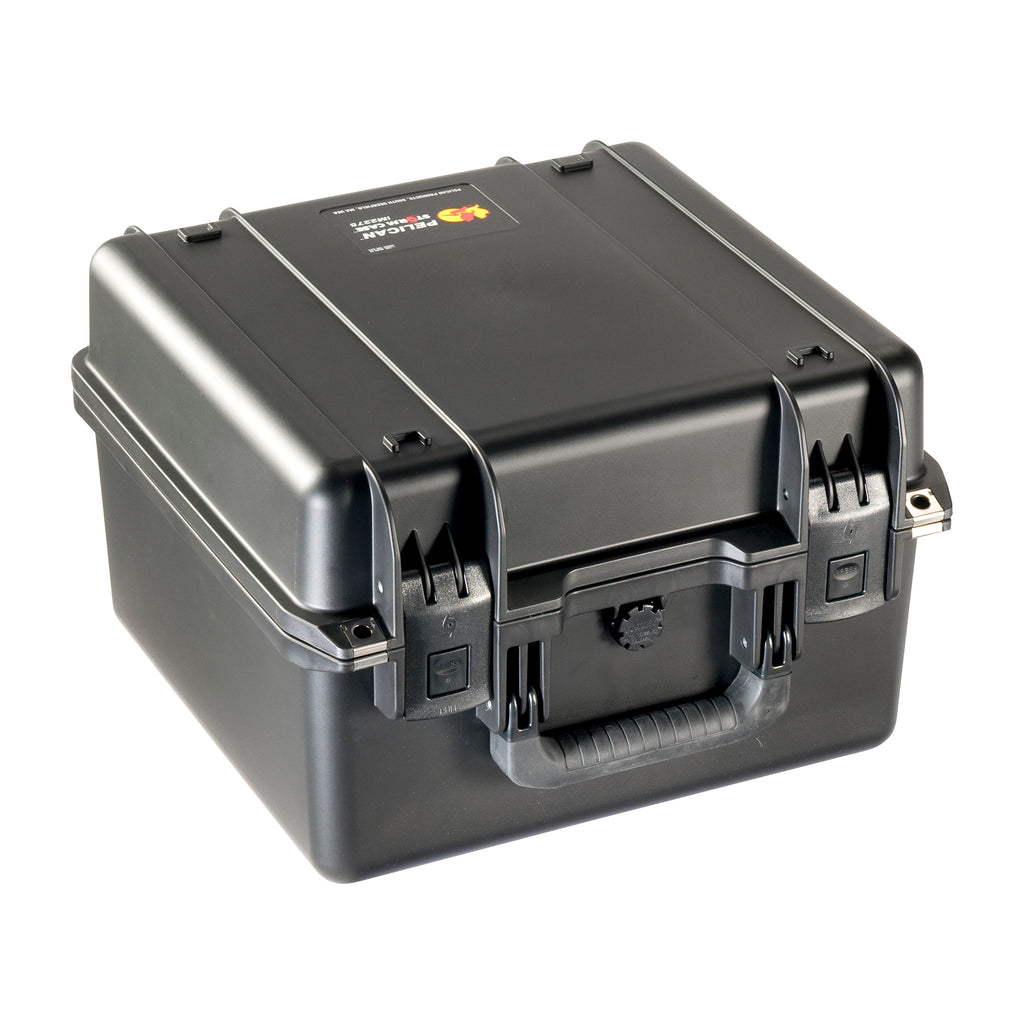

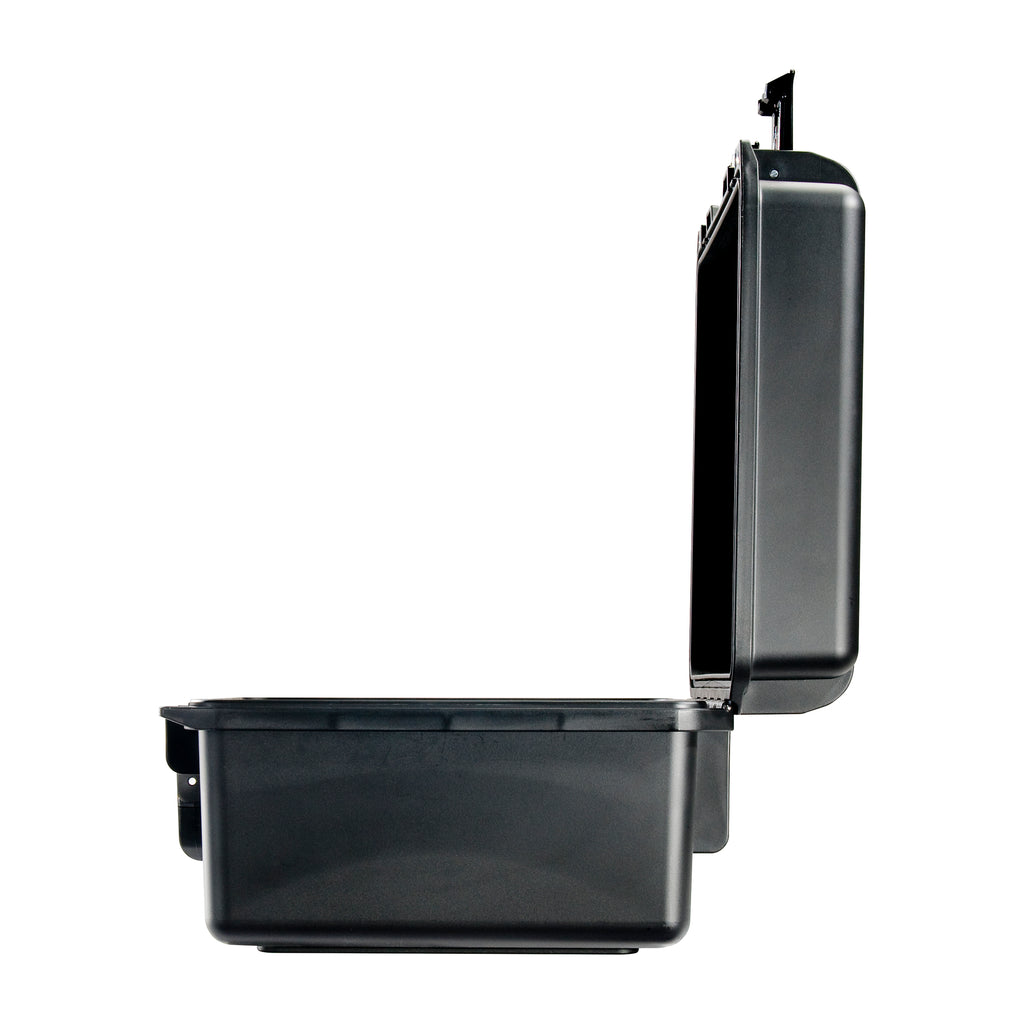

iM2275-X0000: No Foam

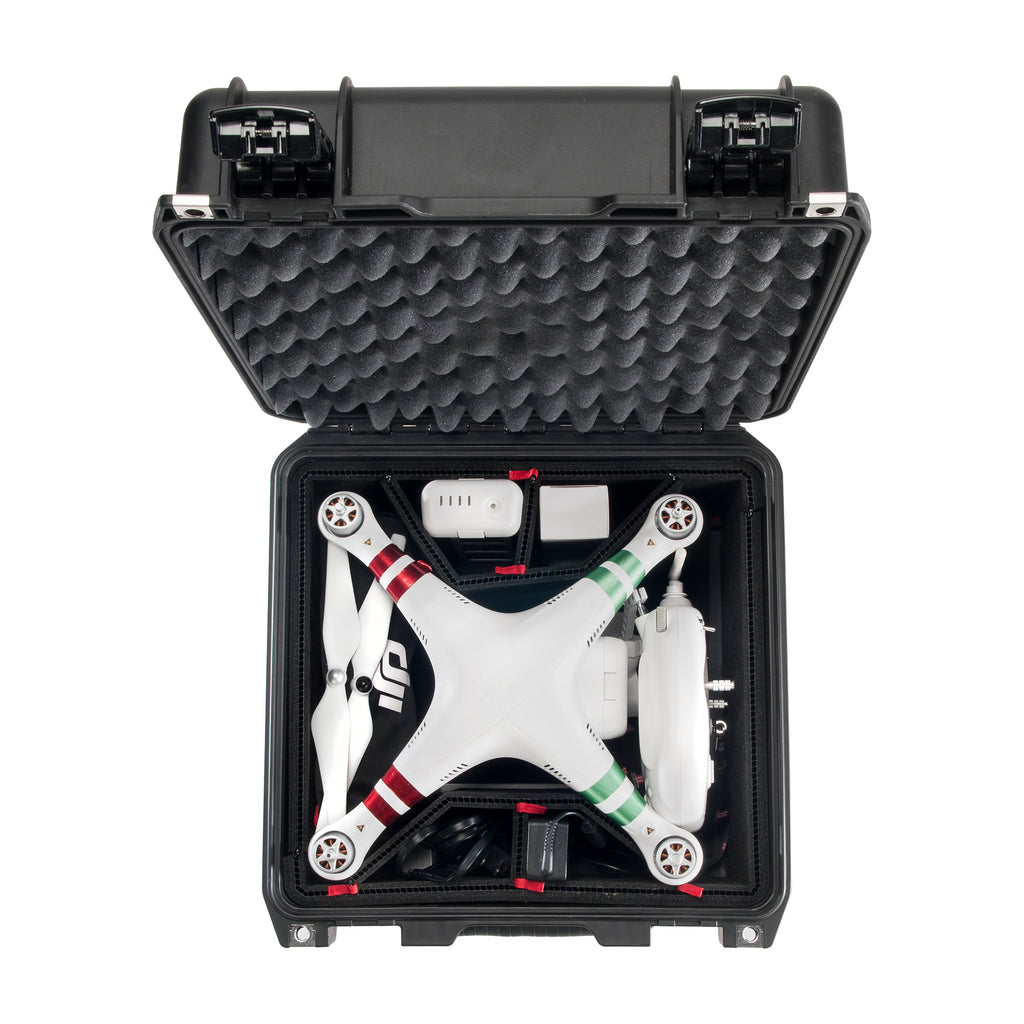

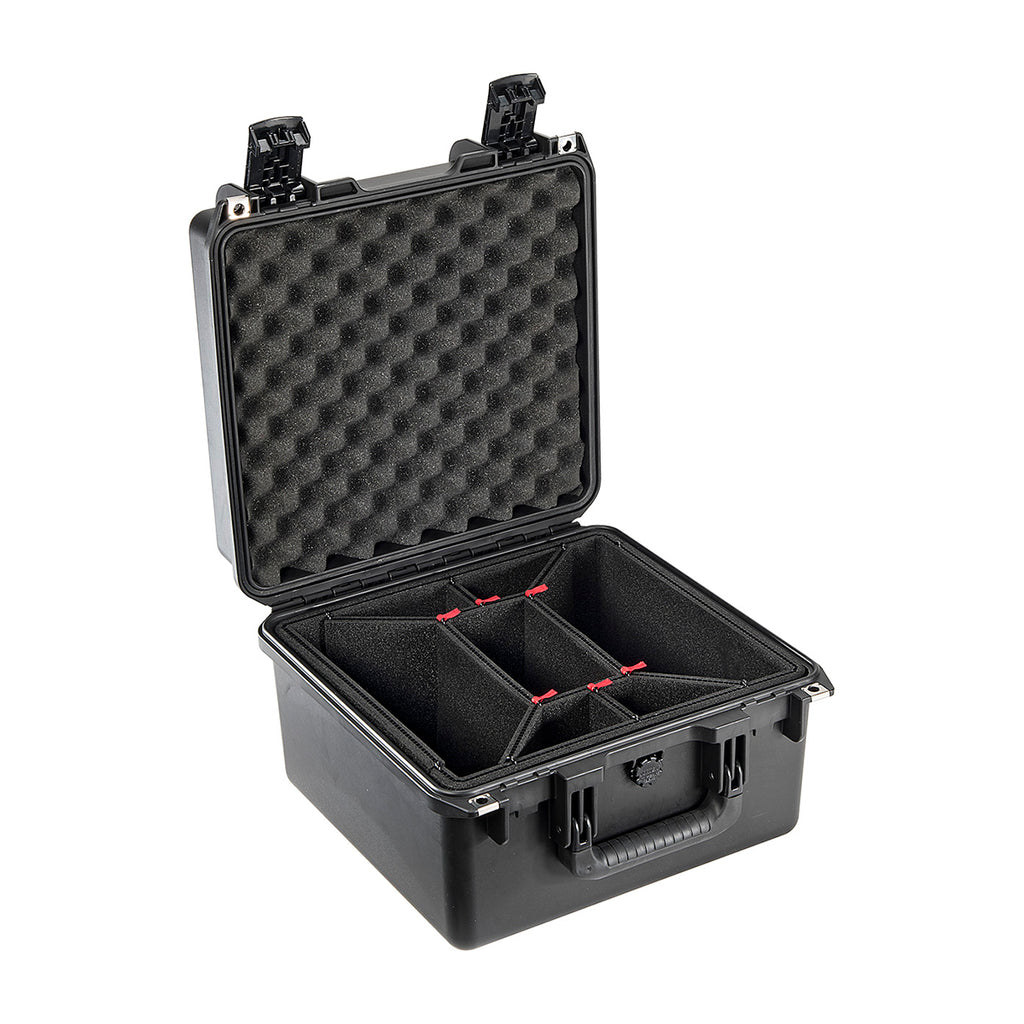

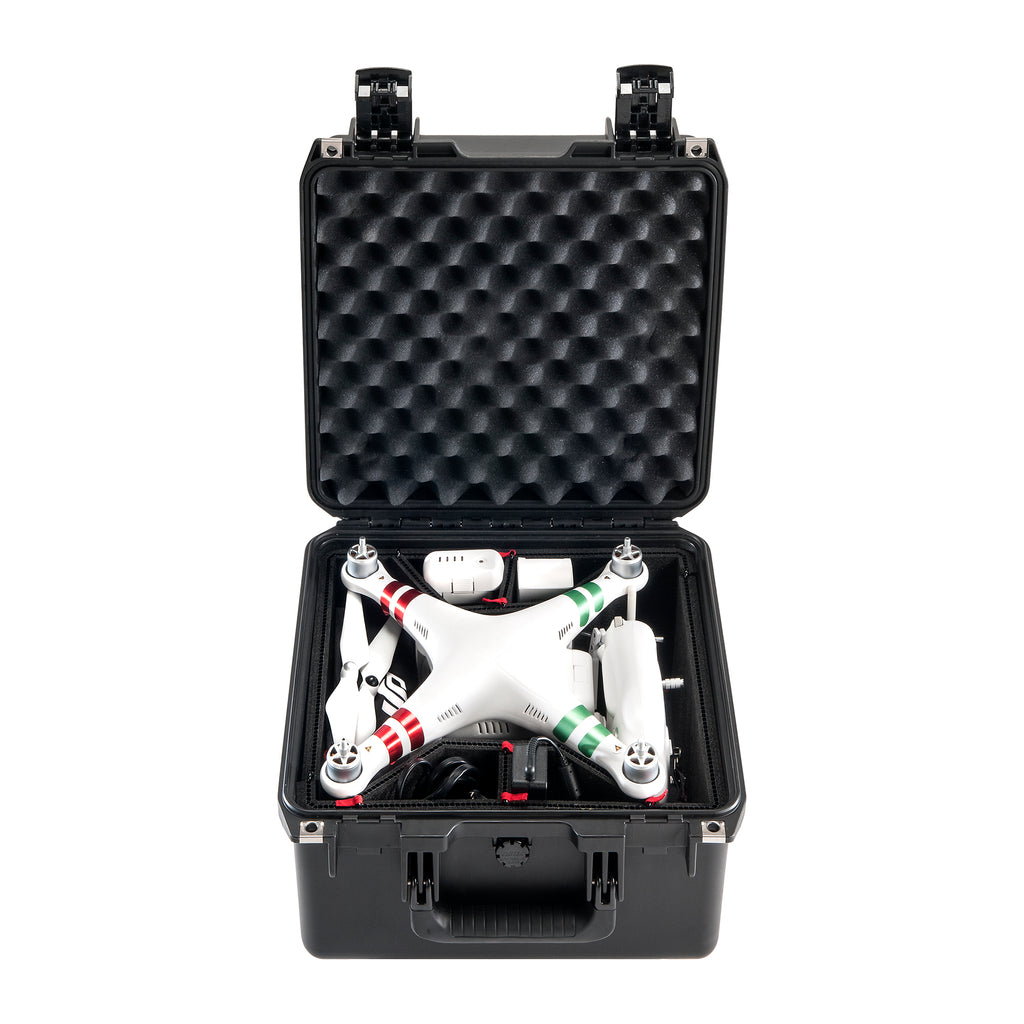

iM2275-X0006: With TrekPak Divider System

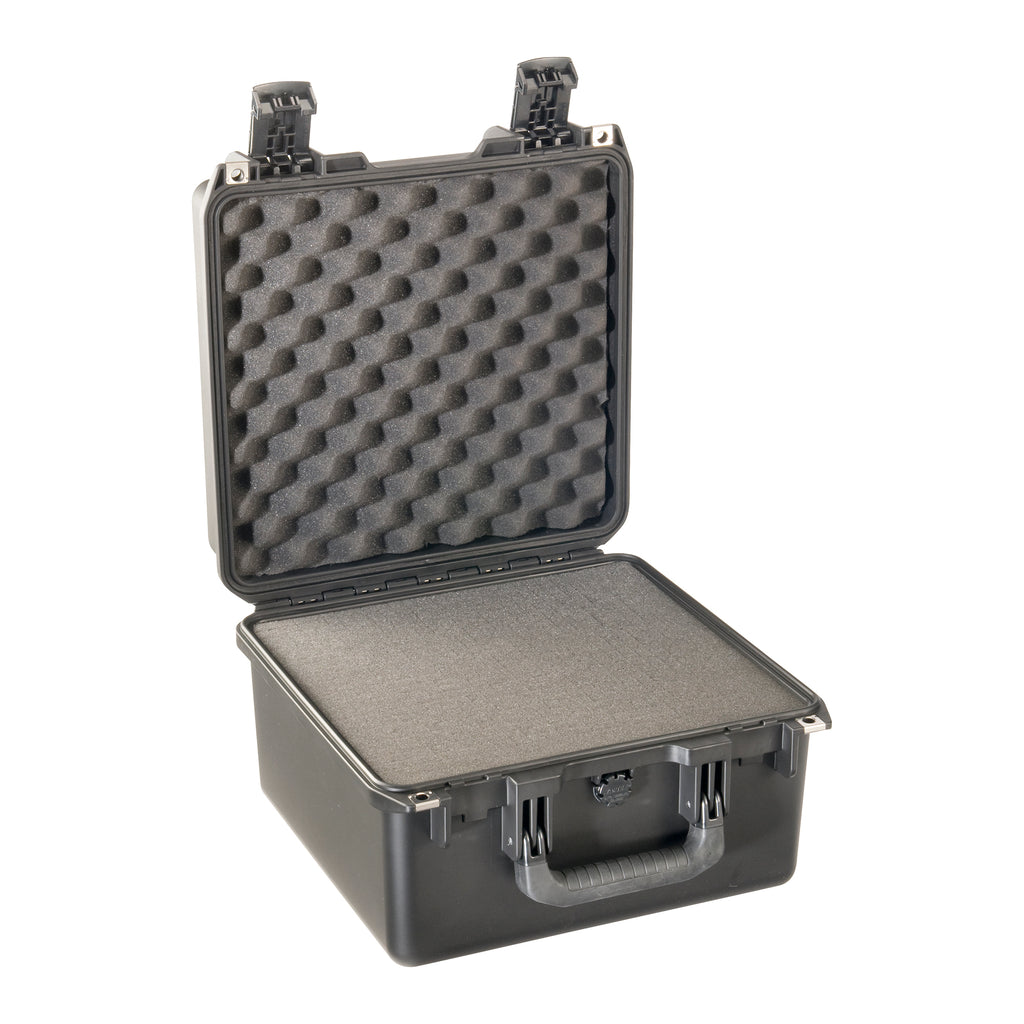

iM2275-X0001: With Foam
DIMENSIONS
Interior (L×W×D): 14.12 x 13.19" x 9.90 (35.9 x 33.5 x 25.1 cm)
Exterior (L×W×D): 15.25 x 15.50" x 10.22 (38.7 x 39.4 x 26 cm)
Lid Depth: 3.20" (8.1 cm)
Bottom Depth: 6.30" (16 cm)
Total Depth: 9.5" (24.1 cm)
Int Volume: 1.07 ft³ (0.03 m³)
MATERIALS
Body: Injection Molded HPX™ high performance resin
Latch: Valox - Polybutylene Terephthalate (PBT)
Latch (Alt): Xenoy - Polyester/Polycarbonate blend
O-Ring: EPDM
Pins: Stainless Steel
Pins (Alt): Aluminum
Foam: 1.3/1.35 polyester
Purge Body: Valox - Polybutylene Terephthalate (PBT)
Purge Body (Alt): Xenoy - Polyester/Polycarbonate blend
Purge Vent: Gortex membrane
COLORS
Black
OD Green
WEIGHT
Weight With Foam: 10.25 lbs (4.6 kg)
Weight Empty: 8.00 lbs (3.6 kg)
Buoyancy: 68.80 lbs (31.2 kg)
TEMPERATURE
Minimum Temperature: -20°F (-28.9 °C)
Maximum Temperature: 140°F (60 °C)
CERTIFICATIONS
IP67
OTHER
Master Pack: 3
Military: yes
