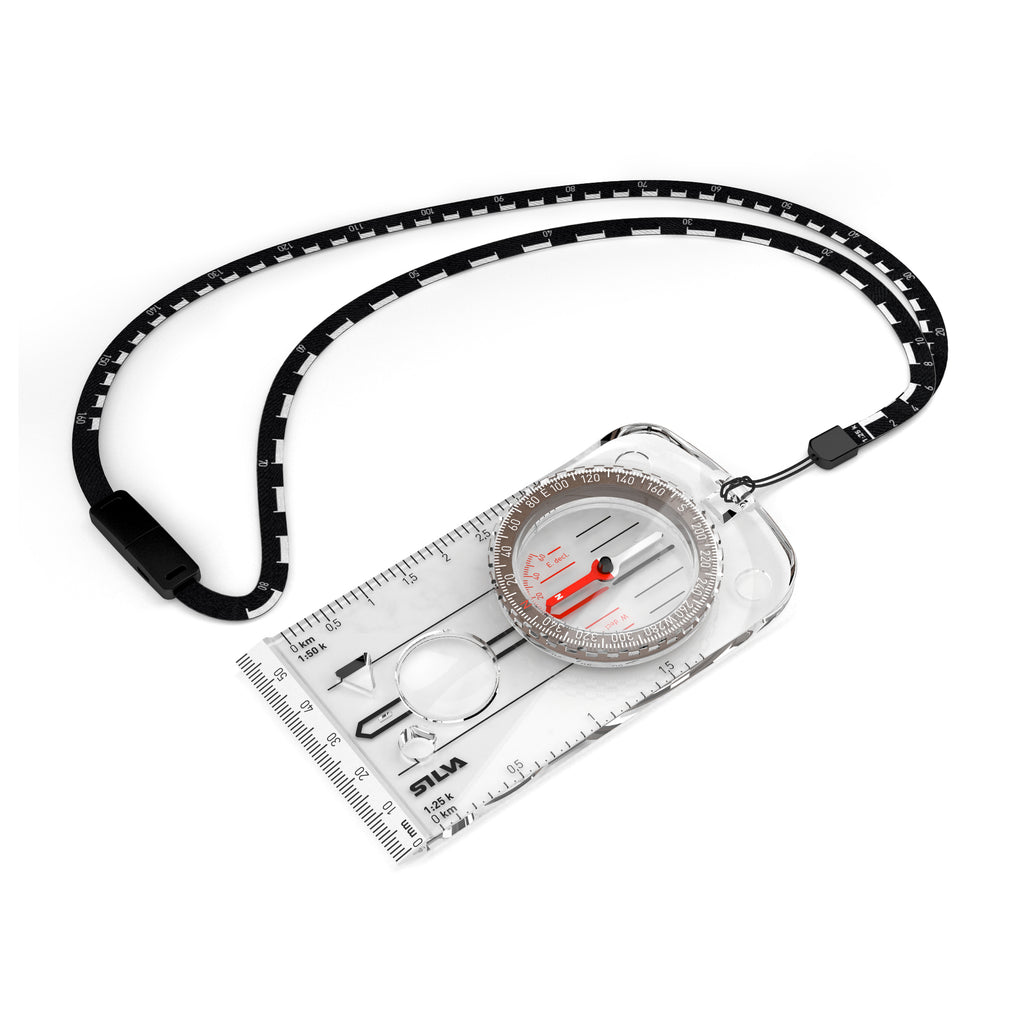

Silva 3NL-360 Compass
SILVA 3NL-360 is an all-round compass, suitable for most outdoor activities.
The easy to grip compass housing features a stable, easy to read needle. Patented red/black north-south lines in the capsule bottom ensure easy and safe settling. The baseplate with curved up back end has a magnifying lens for precision map work together with stencil holes for star and control markings in the front.
The scale slide at the tip of the compass is detachable. The included scale lanyard makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
• All-round use
All-round compass for basic use
• Rotatable housing
Rotatable housing with grip friendly surface
• Built-in magnifier
Large magnifying lens for detailed map reading
• Scale lanyard
Makes it easier to quickly make a distance judgement of your route or to plan your route in advance
Features
• Detachable distance lanyard with scales to measure longer distances.
• Map measuring scales; 1:15k, 1:25k, 1:50k, mm.
• Declination scale inside the capsule.
• Rotatable housing – use with the SILVA 1-2-3 System®
• Magnifying lens for precision map work.
• Robust material that withstands tough treatment and conditions.
• All-round compass for basic outdoor use
Article number: 37583-13 (ME) Other model: 37583 (MN), 37583-15(MS)
Accuracy: +/- 1 degree
Altitude use: 5000m @-15 °C
Clinometer: No
Declination adjustment: Declination scale inside capsule, No
Graduation: 360°
Illumination: No
Impact resistance: 30g in XYZ directions and free fall from 1.5 m height into gravel
Magnifying lens: Yes
Material: Acrylic
Patented red/black N/S lines in capsule: Yes
Resolution degrees / mils: 2/-
Scales: Scale slide: 1:15k, mm / Baseplate: 1:25k, 1:50k
Settling time from 90° angle to complete rest: 5 sec
Settling time from 90° angle within ± 3°: 2.7 sec
Sighting System: No
Silicon friction feet: Yes
Size: 115x60x10 mm
Temperature operating range: -30 to +60 C
Type of compass: SILVA 1-2-3, baseplate
UTM position plotting scales (Romer scales): No
Variant: Magnetic Equator, Magnetic South, Magnetic North
Water resistance: Waterproof
Weight: 36g
