Description

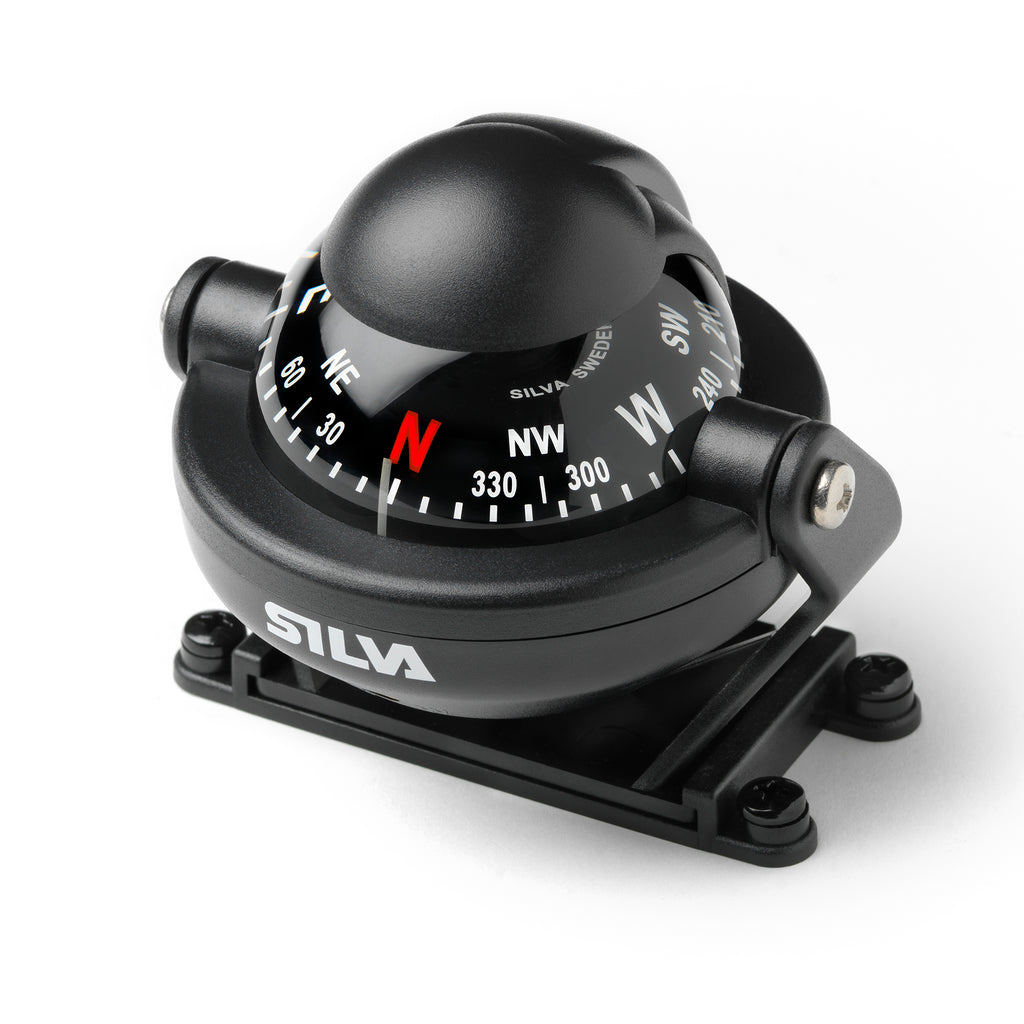

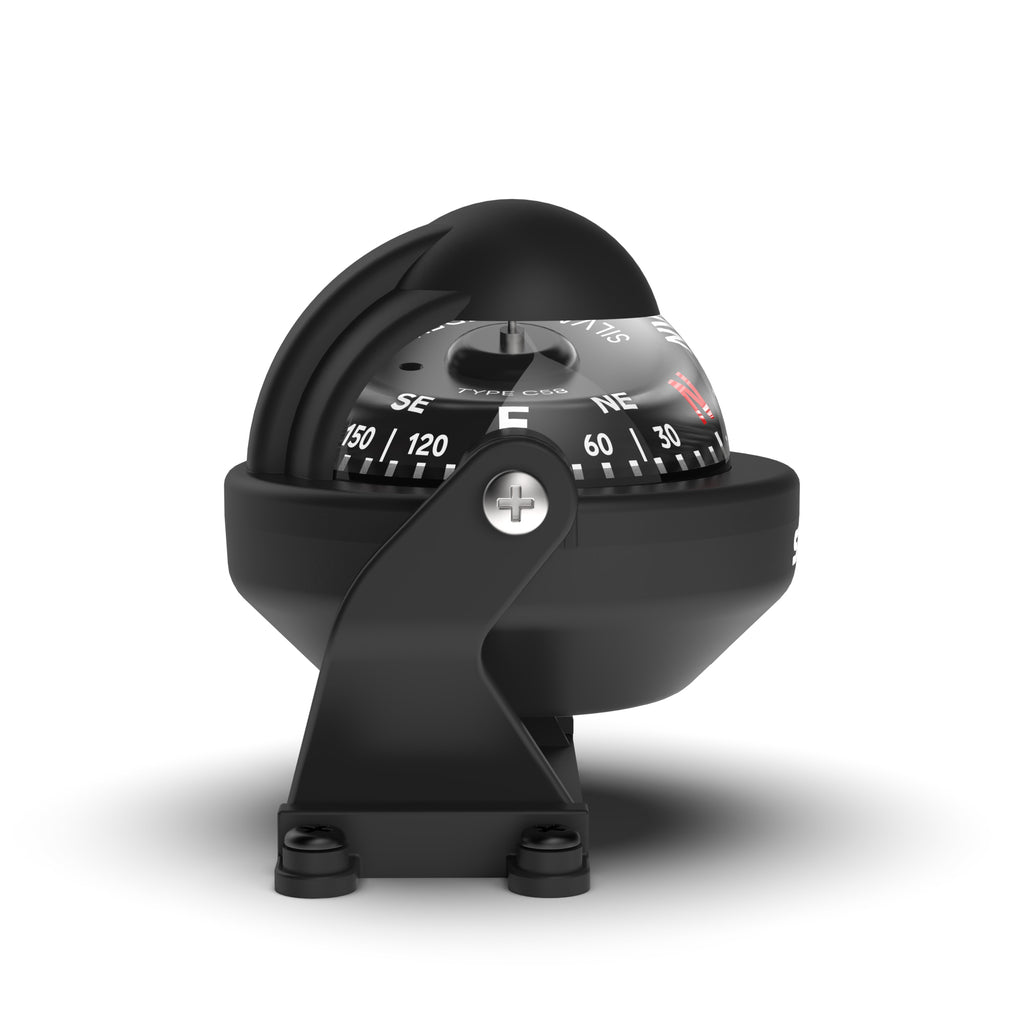

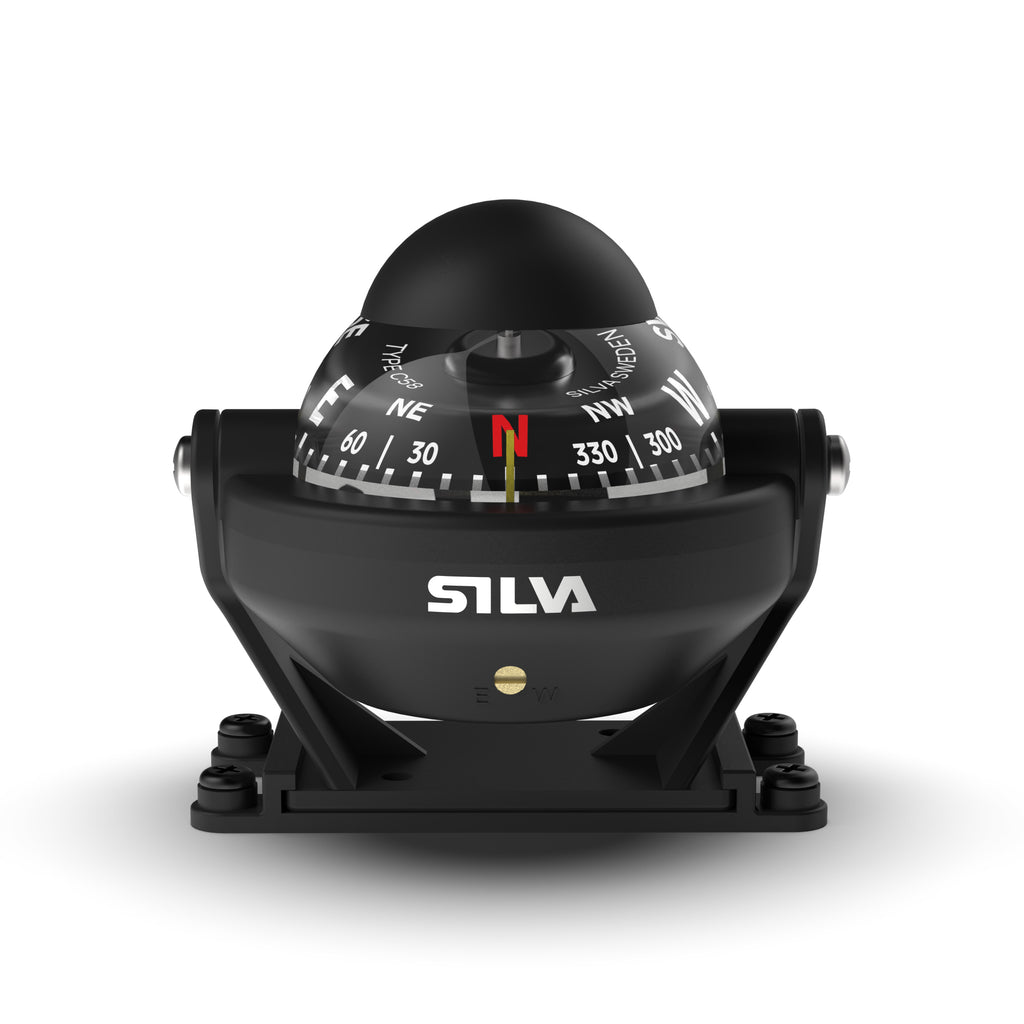

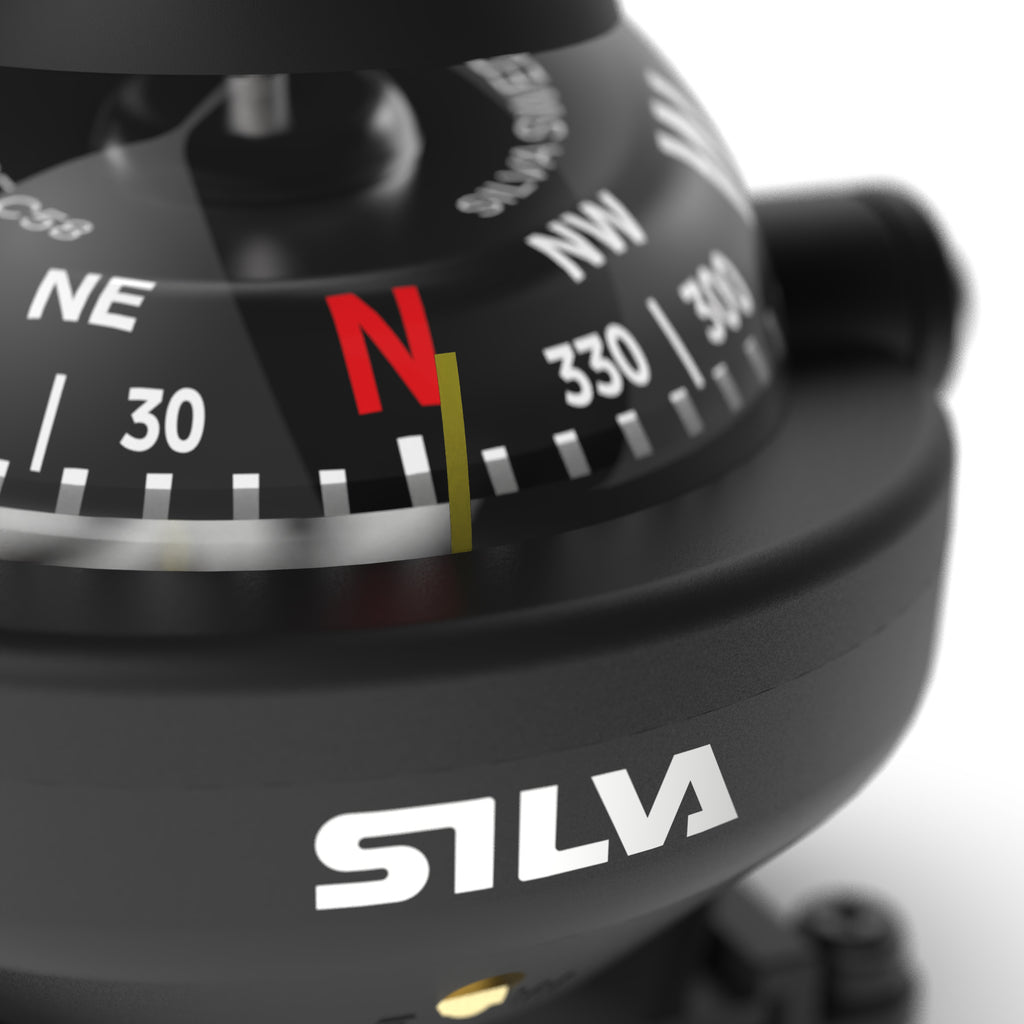

C58 is a bracket mounted steering compass designed for movement and optimized for powerboats.
Fitted with a detachable bracket, it can be mounted on almost any vehicle, including power boats, and in almost any direction: horizontally, vertically or up-side-down. The 12V integrated illumination makes the C58 suitable for night navigation.
With multiple mounting plates (one included) you can easily move your compass between vehicles as well as between different places on your boat. The compass comes with the feature of built-in deviation compensator which allows adjustments (up to ±40°) if the compass is interfered by another magnetic field.
Type of compass: Steering compass
Article number: 35730-0751 (MN) 35730-0755 (MS)
Accuracy: ± 1° (17.8 mils)
Apparent card diameter: 55mm
Built-in compensator: Yes
Card type: Cone
Compatibility: Powerboats
Declination adjustment: Up to ± 40°
Dimensions: 88x76x81mm
Gimballed cradle: No
Heeling angle: Roll: 20° Pitch: 20°
Heeling angle scale: No
Illumination: 12V., Red
Lubber lines: Yes, 1 centre
Material: ABS, Acrylic
Memory ring: No
Mounting: Bracket
Mounting angle: Any
Temperature operating range: -10°C to +70°C
Variant: Magnetic North, Magnetic South
Water resistance: Waterproof
Weight: 205g
Instruction manuals languages: SE, GB, F, DE, DK, FIN, JP, CN, RU, NO, NL, IT, PT, ES
Warranty: 5 years
Country of Origin: China
