Description
The SILVA ClinoMasterTM Clinometer is a hand-held instrument for measuring vertical angles. ClinoMasterTM is available in two versions featuring different sighting systems : Lensatic and Prismatic.

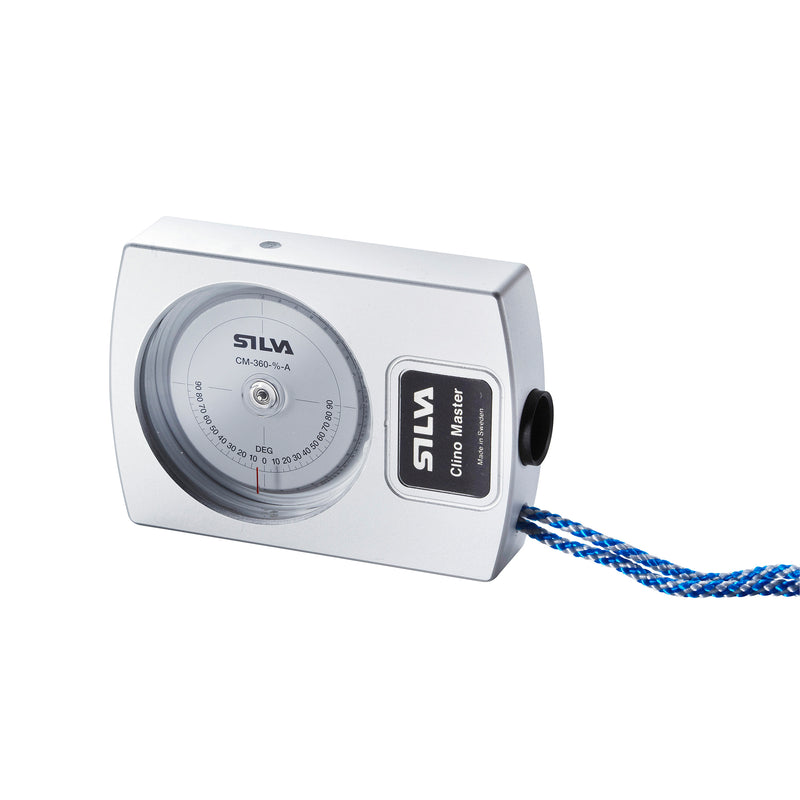

The ClinoMasterTM Lensatic is the traditional Clinometer model featuring an aluminium protected sighting system for withstanding the toughest conditions.
ClinoMasterTM Prismatic combines the traditional ClinoMasterTM features with a superbly clear and light-strong prismatic sighting system. Thanks to the construction it is extremely easy to obtain accurate readings even in dark conditions.
Sighting system: The ClinoMasterTM Lensatic is equipped with a parallax free glass lens magnification (10x) sighting system, integrated in the aluminium housing. The ClinoMasterTM Prismatic is equipped with an extremely light strong parallax free prismatic magnification (10x) sighting system on the aluminium housing.
Capsule: Anti-static liquid filled for optimal dampening of the clinometer card.
Clinometer card: The ClinoMasterTM Lensatic is equipped with an aluminium clinometer card with a precision scale.The prismatic version is equipped with a transparent clinometer card with a precision scale. Both models are equipped with a top scale for direct readings on the top of the card. Sapphire jewel bearings are used, for friction free movement of the card allowing fast and accurate readings.
Accuracy: Max +-0.25° from true angle with precision sighting. Max +-1.0° from true angle with direct reading at the lubber line on top of the card.
Dimensions and weights:
LA-models 75x53x16 mm. Weight:110 g.
PA-models 75x53x16 mm. Weight:120 g.
